哈博戴斯阿斯科男校The Haberdashers' Aske's Boys' School 13+物理入学考试

  13+ Entrance Examination PHYSICS

  •科学论文分为三个部分(生物,化学和物理)。科学论文的时间是1小时。每个部分的时间不超过20分钟。

  •在空白处回答问题。不要回答太长。

  •你可以在任何一个数字题中使用计算器。

  •粗略的工作应该写在纸上,但不要写在空白处。

  •在下面的方框中写上你的名字和学校。

  1. Three bulbs are connected to a battery so that they are all lit normally. The filament in one of the bulbs breaks and all three bulbs go out.

  Draw the circuit diagram for the bulbs in this case and use it to explain why the two working bulbs are no longer lit.

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

  2. The sun is the source of almost all of the energy that we use. Solar (or photovoltaic) cells use the Sun’s energy directly to generate electricity.

  Describe another way in which we can generate electricity and explain how this energy originates from the Sun.

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

  3. Omar heats a hot steel ball until it is glowing and then lowers it into a beaker of cold water.

哈博戴斯阿斯科男校The Haberdashers' Aske's Boys' School 13+物理入学考试

  (a) Describe and explain what happens to the reading on the thermometer in the next few minutes after he has lowered the ball into the water.

  ......................................................................................

  ......................................................................................

  ......................................................................................

  .....................................................................................

  (b) From his results, he calculates that:

  (i) the thermal energy stored in the steel ball has fallen by 3770 J;

  (ii) the thermal energy stored in the water has risen by 2940 J.

  The energy stored in the water rose by less than 3770 J. What has happened to the other 830 J?

  ......................................................................................

  ......................................................................................

  ......................................................................................

  ......................................................................................

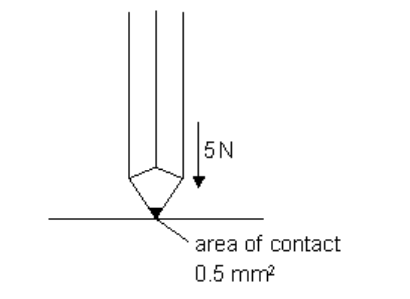

  4. Calculate the pressure that your pencil exerts on this paper assuming that your pencil exerts a force of 5 N on the paper and that the area of the pencil in contact with the paper is 0.5 mm2.

  Diagram not to scale

哈博戴斯阿斯科男校The Haberdashers' Aske's Boys' School 13+物理入学考试

  Show full working in your calculation and include a unit.

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

  ...........................................................................................

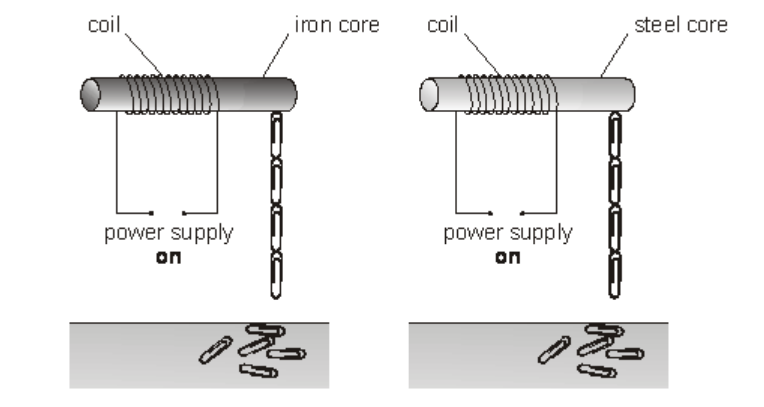

  5. David made two electromagnets and the diagram shows the number of paper-clips each could support.

哈博戴斯阿斯科男校The Haberdashers' Aske's Boys' School 13+物理入学考试

  (a) (i) What should David conclude from this?

  .................................................................................

  .................................................................................

  (ii) State and explain what happened when David switched off the power supply in each of the circuits.

  .................................................................................

  .................................................................................

  .................................................................................

  (b) David used a sensor to measure the strength of an electromagnet. He placed the sensor 50 mm from the electromagnet and increased the current in the coil.

  (i) On the axes below sketch how the reading on the sensor changed as the current was increased, label your line as “50 mm distance”

  He then repeated the experiment with the sensor 25 mm from the electromagnet.

  (ii) On the axes below sketch how the reading on the sensor changed as the current was increased. Label your line as “25 mm distance”

哈博戴斯阿斯科男校The Haberdashers' Aske's Boys' School 13+物理入学考试

  (c) What else could David change to affect the electromagnet strength?

  ......................................................................................

  ......................................................................................

  ......................................................................................

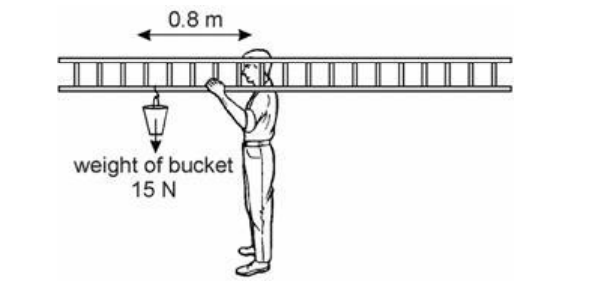

  6. A window cleaner hooks his bucket onto the ladder and balances it as shown in the diagram.

  The bucket weighs 15 N and is 0.8 m from his shoulder.

哈博戴斯阿斯科男校The Haberdashers' Aske's Boys' School 13+物理入学考试

  (a) Calculate the turning effect, or moment, about his shoulder due to the weight of the bucket.

  ......................................................................................

  ......................................................................................

  ......................................................................................

  (b) The weight of the ladder is 60 N and it causes a turning effect about his shoulder that balances the weight of the bucket.

  Use this information to identify on the diagram above the position of the centre of gravity (or mass) of the ladder, include the distance from his shoulder.

  Show all of your working out below.

  ......................................................................................

  ......................................................................................

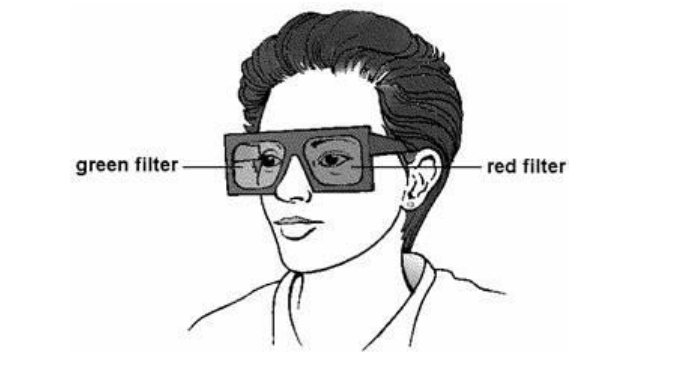

  7. Sunita puts on a pair of glasses with filters in them coloured as shown below. She uses them to look at a red lamp and then at a white lamp with one eye at a time.

哈博戴斯阿斯科男校The Haberdashers' Aske's Boys' School 13+物理入学考试

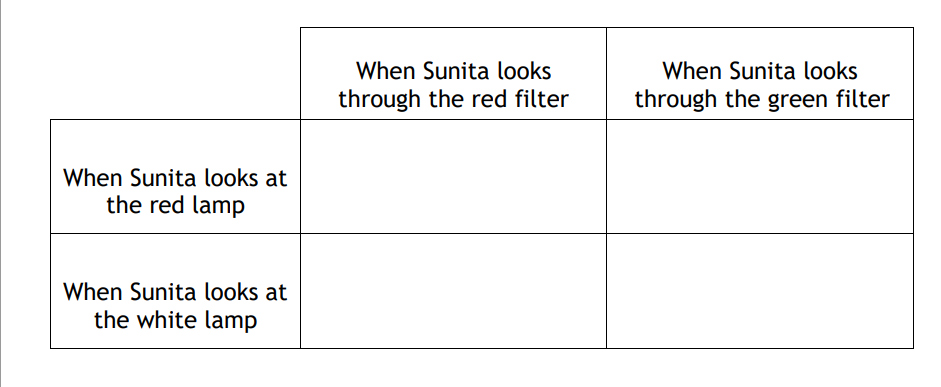

  Complete the table below to show the colour that Sunita sees through each of the filters.

哈博戴斯阿斯科男校The Haberdashers' Aske's Boys' School 13+物理入学考试

  8. In 1610, the Italian scientist, Galileo, observed four bright moons near Jupiter. Each night the moons moved.

  (a) Explain how we can see the moons of Jupiter.

  ...........................................................................................

  ...........................................................................................

  (b) The four moons are approximately the same distance from the Earth. However, they do not have the same brightness.

  Suggest one reason for this.

  ......................................................................................

  (c) Galileo realised that Jupiter and its moons formed a model of our Solar System. In this model:

  what did Jupiter represent?

  ......................................................................................

  what did the moons represent?

  ......................................................................................
